熔噴布過濾效率加載測試報告

來源：天氏庫力發布日期 2020-12-31 瀏覽：

熔噴布的過濾效率指的是熔噴布在特定的面積上，特定的氣流量下，能夠過濾細小顆粒的能力，國標GB2626-2019中對具體的檢測方法，檢測條件及檢測設備作了詳細的要求。今年年初的新冠疫情，導致國內口罩緊缺，同樣緊缺的是口罩的核心心臟-熔噴布。作為口罩過濾性能的關鍵部位，必須質量嚴格達到標準才能被用到口罩上，否則會嚴重威脅大家的生命安全。

我們都知道口罩分：一次性醫用口罩，醫用防護口罩，一次性民用口罩，N95口罩以及一些防塵防霾口罩，除了用途和材料結構上的區別，他們最根本的區別在于過濾效率和氣流阻力上，而一只口罩的過濾效率與氣流阻力的大小幾乎取決于熔噴布，本文我們主要給大家展示一下熔噴布的加載測試，并會在文章中附著加載的測試結果，供大家進一步了解和認識熔噴布的性能。

什么是熔噴布的加載測試？
熔噴布的加載測試一般是指在特定溫度和特定的上游顆粒物濃度范圍內，持續對口罩的外表面釋放顆粒物，直至口罩外表面的顆粒物重量達到一定的克重，并記錄剛開始測試和最終結束時口罩所對應的過濾效率和氣流阻力。詳細的可以參考如下的視頻和數據結果，結果僅供參考。測試設備：天氏庫力TSKL-8130 pro顆粒物過濾效率測試儀（雙光度計），本次測試選用的是油性顆粒，最終加載質量為120mg。

熔噴布油性加載測試視頻：

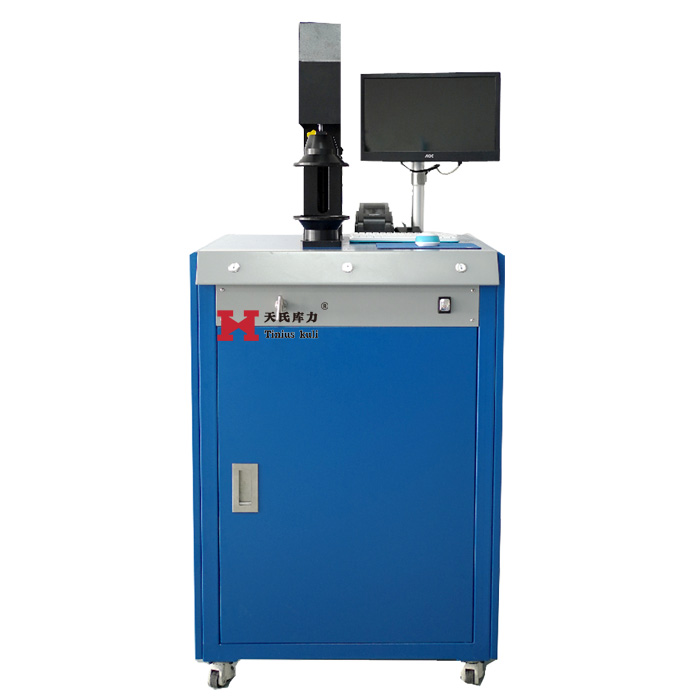

測試設備展示：

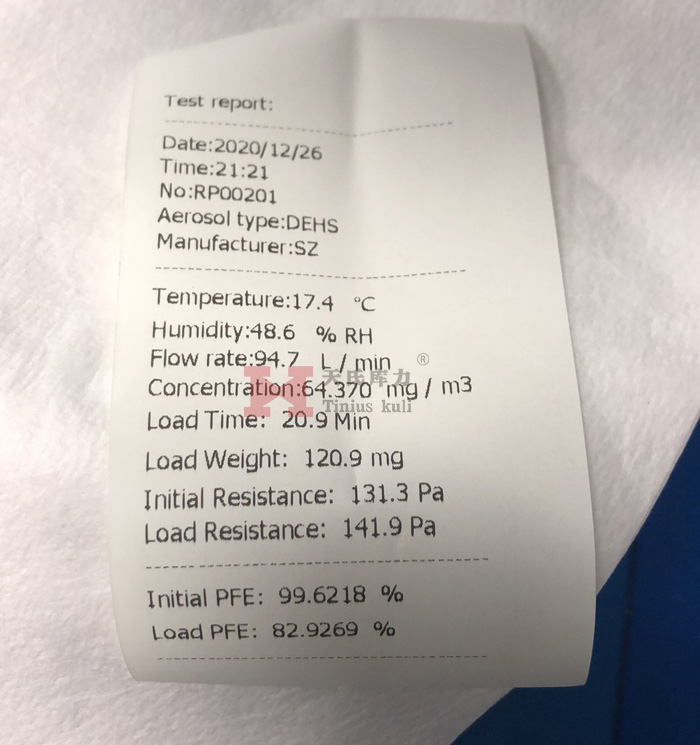

測試報告：

詳細測試報表：

Load Time	Flow	Loading weight(mg)	Upstream concentration (mg/m3)	Downstream concentration (mg/m3)	PFE(%)	Resistance (Pa)
00:20:56	94.7	120.879	64.3697	25.0703	82.92687	141.9
00:20:45	94.7	119.978	64.4580	24.1963	83.11722	142.1
00:20:35	94.7	119.075	63.9251	25.4085	83.30749	141.8
00:20:24	94.7	118.170	64.2401	25.6436	83.50719	141.6
00:20:14	94.7	117.263	64.4256	25.3430	83.70514	142.1
00:20:03	94.7	116.354	63.6336	24.7847	83.90077	142.0
00:19:53	94.7	115.442	64.2077	25.6232	84.09733	141.6
00:19:42	94.6	114.528	64.0605	26.7646	84.29668	141.8
00:19:32	94.7	113.611	64.2225	23.1558	84.49654	141.9
00:19:21	94.6	112.692	65.1882	23.3330	84.69084	141.5
00:19:11	94.7	111.772	64.4374	24.3230	84.88896	141.4
00:19:00	94.7	110.848	64.9232	22.0199	85.08432	141.4
00:18:49	94.7	109.922	64.2725	23.4329	85.28250	141.5
00:18:39	94.7	108.995	64.2902	23.2686	85.48159	141.4
00:18:28	94.7	108.064	63.9074	22.7811	85.68038	141.3
00:18:18	94.7	107.132	64.2136	21.6065	85.87790	140.9
00:18:07	94.6	106.198	64.6141	22.6705	86.07919	141.1
00:17:57	94.7	105.262	64.5198	22.1498	86.27420	140.9
00:17:46	94.7	104.322	64.1459	21.3767	86.46840	141.0
00:17:36	94.6	103.380	64.3079	21.2640	86.66085	140.6
00:17:25	94.7	102.437	65.6122	21.8792	86.86927	141.3
00:17:15	94.7	101.491	65.3766	20.8152	87.07350	141.3
00:17:04	94.7	100.542	64.4933	20.1548	87.27387	140.9
00:16:54	94.7	99.592	65.2912	20.6305	87.46946	140.6
00:16:43	94.6	98.638	64.5140	19.4580	87.66401	140.6
00:16:32	94.7	97.684	65.3030	19.4129	87.85821	140.8
00:16:22	94.6	96.726	64.7613	18.9340	88.05204	140.5
00:16:11	94.8	95.767	64.3579	19.6073	88.24742	140.6
00:16:01	94.7	94.803	64.3432	18.9212	88.44971	140.7
00:15:50	94.7	93.838	64.5552	18.5701	88.64461	140.6
00:15:40	94.6	92.871	64.7819	17.9860	88.83571	140.8
00:15:29	94.7	91.902	63.9045	18.4477	89.02963	140.9
00:15:19	94.6	90.931	64.7966	18.4359	89.22372	140.7
00:15:08	94.7	89.957	64.3491	16.8822	89.42135	140.5
00:14:58	94.7	88.980	65.1705	17.1528	89.61040	140.6
00:14:47	94.7	88.001	65.4267	18.6334	89.80967	140.1
00:14:36	94.7	87.019	65.6092	16.6664	90.00542	140.6
00:14:26	94.8	86.036	64.5846	16.0769	90.19785	140.6
00:14:15	94.7	85.051	64.0105	16.5096	90.39054	140.1
00:14:05	94.7	84.063	64.5375	16.2766	90.58570	140.1
00:13:54	94.7	83.072	64.6994	15.5873	90.77305	140.2
00:13:44	94.7	82.079	64.3844	15.5615	90.96403	140.0
00:13:33	94.7	81.084	64.1135	14.8389	91.15460	139.9
00:13:23	94.6	80.087	64.8908	14.0498	91.33764	139.7
00:13:12	94.7	79.089	65.3884	15.1063	91.53294	139.8
00:13:02	94.7	78.087	65.2706	14.8830	91.72222	139.7
00:12:51	94.7	77.084	64.6052	13.7599	91.91469	139.8
00:12:40	94.7	76.077	64.8938	13.5945	92.09358	139.6
00:12:30	94.7	75.068	64.4639	13.4872	92.27433	139.6
00:12:19	94.7	74.057	64.7731	13.2563	92.45583	139.7
00:12:09	94.6	73.045	64.8260	12.3168	92.63657	139.3
00:11:58	94.7	72.031	64.8113	12.7356	92.81403	139.2
00:11:48	94.7	71.015	65.0321	12.5520	92.99167	138.9
00:11:37	94.7	69.996	65.0616	12.8784	93.16975	139.4
00:11:27	94.7	68.974	64.5552	11.0917	93.34215	139.2
00:11:16	94.7	67.951	64.9733	11.7155	93.51918	138.9
00:11:06	94.7	66.926	65.6063	11.3269	93.69189	138.6
00:10:55	94.8	65.898	65.3678	10.8040	93.86043	138.7
00:10:45	94.7	64.868	64.1400	10.6869	94.03530	138.7
00:10:34	94.7	63.835	65.1764	10.5162	94.20341	139.1
00:10:23	94.7	62.801	65.5062	9.8269	94.36868	138.8
00:10:13	94.7	61.765	65.5356	9.3351	94.53314	138.9
00:10:02	94.7	60.726	65.0174	9.2203	94.69191	138.7
00:09:52	94.6	59.686	65.1823	8.9089	94.85048	138.6
00:09:41	94.7	58.645	64.9262	9.1698	95.01095	138.6
00:09:31	94.7	57.600	64.6141	8.3667	95.16615	138.2
00:09:20	94.7	56.554	65.6033	8.5385	95.31952	138.5
00:09:10	94.7	55.506	65.5886	7.8803	95.46918	138.2
00:08:59	94.7	54.456	66.5367	8.2121	95.61717	138.1
00:08:49	94.7	53.404	64.8231	7.3402	95.75708	137.7
00:08:38	94.7	52.350	65.6769	7.3413	95.90069	137.9
00:08:27	94.7	51.295	65.5003	7.1233	96.03990	137.9
00:08:17	94.6	50.238	65.5268	6.7282	96.17600	138.0
00:08:06	94.8	49.180	66.1421	6.2880	96.31113	138.0
00:07:56	94.7	48.118	65.4326	6.1849	96.43830	137.9
00:07:45	94.7	47.056	65.0469	6.0131	96.56620	137.5
00:07:35	94.6	45.992	64.7613	5.7221	96.69290	137.5
00:07:24	94.7	44.927	66.3718	5.3281	96.81960	137.2
00:07:14	94.6	43.860	65.6416	5.2851	96.94153	137.1
00:07:03	94.7	42.792	66.2805	5.0436	97.06117	137.1
00:06:53	94.7	41.722	65.8772	4.8998	97.17882	136.9
00:06:42	94.7	40.650	65.6917	4.4816	97.29659	136.8
00:06:32	94.7	39.577	65.3737	4.5190	97.41463	137.0
00:06:21	94.8	38.503	66.3600	4.0340	97.52922	136.5
00:06:10	94.7	37.426	66.0420	4.0708	97.63849	136.3
00:06:00	94.7	36.348	65.8006	3.6908	97.75058	136.4
00:05:49	94.7	35.269	66.0185	3.5293	97.85158	136.3
00:05:39	94.8	34.188	64.9733	3.4044	97.95318	136.4
00:05:28	94.7	33.106	65.8094	3.1665	98.04873	136.1
00:05:18	94.7	32.023	65.8801	2.9289	98.14142	136.2
00:05:07	94.8	30.939	64.9821	2.8799	98.23142	135.8
00:04:57	94.7	29.853	66.2864	2.5965	98.31667	135.6
00:04:46	94.6	28.766	65.8183	2.4526	98.40035	135.7
00:04:36	94.8	27.679	66.2746	2.3178	98.47983	135.6
00:04:25	94.7	26.589	67.2021	2.1423	98.55735	135.9
00:04:14	94.7	25.499	65.6092	2.0850	98.63245	135.4
00:04:04	94.7	24.408	66.2599	1.9354	98.70548	135.2
00:03:53	94.8	23.315	66.1451	1.7486	98.77173	135.0
00:03:43	94.8	22.220	65.9272	1.6033	98.83957	134.7
00:03:32	94.8	21.124	66.2334	1.4480	98.90349	134.9
00:03:22	94.7	20.026	65.7241	1.4117	98.96147	134.5
00:03:11	94.7	18.927	66.1745	1.2589	99.02036	134.2
00:03:01	94.8	17.827	66.4719	1.2256	99.07491	134.2
00:02:50	94.8	16.725	66.5779	1.0858	99.12474	134.5
00:02:40	94.7	15.623	66.8252	0.9529	99.17314	134.2
00:02:29	94.8	14.520	65.8742	0.9298	99.22062	134.0
00:02:19	94.8	13.416	65.5268	0.8678	99.26747	133.7
00:02:08	94.8	12.310	66.9636	0.7566	99.31118	134.1
00:01:57	94.7	11.201	66.2069	0.6879	99.35127	133.4
00:01:47	94.7	10.093	66.2364	0.6045	99.38994	133.3
00:01:36	94.8	8.984	65.6828	0.5527	99.42398	133.2
00:01:26	94.9	7.871	66.0656	0.5268	99.45919	132.9
00:01:15	94.9	6.755	66.7840	0.4580	99.49044	132.9
00:01:05	94.9	5.637	67.4553	0.4126	99.51916	132.9
00:00:54	94.9	4.518	66.7899	0.3734	99.54521	132.6
00:00:44	94.9	3.396	67.2168	0.3556	99.57178	132.1
00:00:33	95.0	2.273	67.6290	0.3181	99.59529	132.2
00:00:23	94.5	1.146	67.7497	0.2900	99.62176	131.3

結論：
該熔噴布采用油性加載測試，總測試時間約20分鐘，加載顆粒物濃度約65-68mg/m³，初始加載過濾效率為99.62176%，初始?xì)饬髯枇?31.3pa，最終過濾效率為82.92687%，最終氣流阻力為141.9pa，整個過程測試氣流量為95L/min。測試結果僅供參考，歡迎大家一起交流交流熔噴布或口罩的加載測試，聯系方式：13862179202 朱經理。
